A-Type Vibration Mount

Vibration Mount

The A-Type Vibration Mount is a high-performance rubber mount specially designed to minimize vibration, shock, and noise in industrial machines, motors, generators, compressors, and heavy equipment. The A-type design ensures effective absorption of vibrations in both vertical and horizontal axes, providing maximum isolation and stability between machines and mounting surfaces.

A-type vibration mounts are produced from durable rubber materials such as EPDM, NBR, SBR, and neoprene rubber. These materials offer superior properties including high elasticity and durability, as well as oil resistance, ozone and UV resistance, high temperature resistance, and chemical resistance. Thus, A-type mounts provide long-lasting performance in industrial and heavy industry applications, increasing equipment lifespan.

Applications

• Industrial machinery and production lines
• Compressor and generator assemblies
• Motor and pump bases
• Electrical panels and control units
• Air conditioning and ventilation systems
• Crane and heavy load lifting equipment
• Precision laboratory and device installations

Advantages

• Maximum vibration and noise damping performance
• High stability and durability with special A-type design
• Easy installation and long-lasting use
• Different size, hardness, and rubber material options
• Safe use with shock-absorbing and non-slip structure
• Increases machine and equipment lifespan, reduces maintenance costs
• Provides industrial vibration isolation and vibration control
• Ideal for heavy industry, automotive, pump, generator, compressor, and motor applications

A-type vibration mounts have a wide range of applications such as industrial vibration damper, rubber vibration mount, machine vibration absorber, motor vibration mount, compressor mount, generator mount, noise-reducing rubber mount, vibration isolation rubber mount, EPDM A-type mount, NBR A-type mount, SBR A-type mount, neoprene vibration mount. Thanks to the ability to produce custom sizes, hardness, and material types, they adapt to all kinds of machines and equipment. A-type mount prices vary depending on size and material selection.

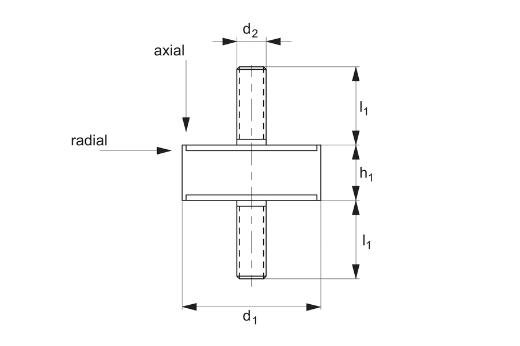

RUBBERSAN CODE	PRODUCT	SIZE	BOLT

010

6*7 – M.3

6*7

M.3

011

8*8 – M.3

8*8

M.3

012

10*5 – M.4

10*5

M.4

013

10*8 – M.4

10*8

M.4

014

10*10 – M.4

10*10

M.4

015

10*13 – M.4

10*13

M.4

016

10*15 – M.4

10*15

M.4

017

10*20 – M.4

10*20

M.4

018

15*5 – M.4

15*5

M.4

019

15*8 – M.4

15*8

M.4

020

15*10 – M.4

15*10

M.4

021

15*15 – M.4

15*15

M.4

022

15*20 – M.4

15*20

M.4

023

15*25 – M.4

15*25

M.4

024

18*15 – M.6

18*15

M.6

025

20*8 – M.6

20*8

M.6

026

20*10 – M.6

20*10

M.6

027

20*13 – M.6

20*13

M.6

028

20*15 – M.6

20*15

M.6

029

20*20 – M.6

20*20

M.6

030

20*25 – M.6

20*25

M.6

031

20*30 – M.6

20*30

M.6

032

20*40 – M.6

20*40

M.6

033

20*50 – M.6

20*50

M.6

034

25*8 – M.6

25*8

M.6

035

25*10 – M.6

25*10

M.6

036

25*15 – M.6

25*15

M.6

037

25*17 – M.6

25*17

M.6

038

25*20 – M.6

25*20

M.6

039

25*25 – M.6

25*25

M.6

040

25*30 – M.6

25*30

M.6

041

25*40 – M.6

25*40

M.6

042

25*50 – M.6

25*50

M.6

043

30*10 – M.8

30*10

M.8

044

30*15 – M.8

30*15

M.8

045

30*20 – M.8

30*20

M.8

046

30*25 – M.8

30*25

M.8

047

30*30 – M.8

30*30

M.8

048

30*35 – M.8

30*35

M.8

049

30*40 – M.8

30*40

M.8

050

30*50 – M.8

30*50

M.8

051

35*30 – M.8

35*30

M.8

052

40*10 – M.8

40*10

M.8

053

40*15 – M.8

40*15

M.8

054

40*18 – M.8

40*18

M.8

055

40*20 – M.8

40*20

M.8

056

40*25 – M.8

40*25

M.8

057

40*30 – M.8

40*30

M.8

058

40*35 – M.8

40*35

M.8

059

40*40 – M.8

40*40

M.8

060

40*45 – M.8

40*45

M.8

061

40*50 – M.8

40*50

M.8

062

45*30 – M.8

45*30

M.8

063

50*10 – M.10

50*10

M.10

064

50*15 – M.10

50*15

M.10

065

50*20 – M.10

50*20

M.10

066

50*25 – M.10

50*25

M.10

067

50*30 – M.10

50*30

M.10

068

50*35 – M.10

50*35

M.10

069

50*40 – M.10

50*40

M.10

070

50*45 – M.10

50*45

M.10

071

50*50 – M.10

50*50

M.10

072

50*55 – M.10

50*55

M.10

073

50*60 – M.10

50*60

M.10

074

50*65 – M.10

50*65

M.10

075

50*70 – M.10

50*70

M.10

076

50*80 – M.10

50*80

M.10

077

55*20 – M.10

55*20

M.10

078

55*35 – M.10

55*35

M.10

079

60*10 – M.10

60*10

M.10

080

60*15 – M.10

60*15

M.10

081

60*20 – M.10

60*20

M.10

082

60*25 – M.10

60*25

M.10

083

60*30 – M.10

60*30

M.10

084

60*35 – M.10

60*35

M.10

085

60*40 – M.10

60*40

M.10

086

60*45 – M.10

60*45

M.10

087

60*50 – M.10

60*50

M.10

088

60*55 – M.10

60*55

M.10

089

60*60 – M.10

60*60

M.10

090

65*40 – M.10

65*40

M.10

091

70*20 – M.12

70*20

M.12

092

70*25 – M.12

70*25

M.12

093

70*30 – M.12

70*30

M.12

094

70*35 – M.12

70*35

M.12

095

70*40 – M.12

70*40

M.12

096

70*45 – M.12

70*45

M.12

097

70*50 – M.12

70*50

M.12

098

70*55 – M.12

70*55

M.12

099

70*60 – M.12

70*60

M.12

100

70*70 – M.12

70*70

M.12

101

75*20 – M.12

75*20

M.12

102

75*25 – M.12

75*25

M.12

103

75*30 – M.12

75*30

M.12

104

75*35 – M.12

75*35

M.12

105

75*40 – M.12

75*40

M.12

106

75*45 – M.12

75*45

M.12

107

75*50 – M.12

75*50

M.12

108

75*55 – M.12

75*55

M.12

109

75*60 – M.12

75*60

M.12

110

75*75 – M.12

75*75

M.12

111

80*25 – M.12

80*25

M.12

112

80*30 – M.12

80*30

M.12

113

80*35 – M.12

80*35

M.12

114

80*40 – M.12

80*40

M.12

115

80*45 – M.12

80*45

M.12

116

80*50 – M.12

80*50

M.12

117

80*55 – M.12

80*55

M.12

118

80*60 – M.12

80*60

M.12

119

80*65 – M.12

80*65

M.12

120

80*70 – M.12

80*70

M.12

121

80*80 – M.12

80*80

M.12

122

80*90 – M.12

80*90

M.12

123

80*100 – M.12

80*100

M.12

124

90*55 – M.16

90*55

M.16

125

100*25 – M.16

100*25

M.16

126

100*30 – M.16

100*30

M.16

127

100*35 – M.16

100*35

M.16

128

100*40 – M.16

100*40

M.16

129

100*45 – M.16

100*45

M.16

130

100*50 – M.16

100*50

M.16

131

100*55 – M.16

100*55

M.16

132

100*60 – M.16

100*60

M.16

133

100*65 – M.16

100*65

M.16

134

100*70 – M.16

100*70

M.16

135

100*75 – M.16

100*75

M.16

136

100*80 – M.16

100*80

M.16

137

100*100 – M.16

100*100

M.16

138

120*30 – M.16

120*30

M.16

139

120*35 – M.16

120*35

M.16

140

120*40 – M.16

120*40

M.16

141

120*45 – M.16

120*45

M.16

142

120*50 – M.16

120*50

M.16

143

120*55 – M.16

120*55

M.16

144

120*60 – M.16

120*60

M.16

145

120*70 – M.16

120*70

M.16

146

120*80 – M.16

120*80

M.16

147

120*100 – M.16

120*100

M.16

148

120*120 – M.16

120*120

M.16

149

130*35 – M.16

130*35

M.16

150

130*50 – M.16

130*50

M.16

151

130*60 – M.16

130*60

M.16

152

140*40 – M.20

140*40

M.20

153

140*50 – M.20

140*50

M.20

154

140*60 – M.20

140*60

M.20

155

140*70 – M.20

140*70

M.20

156

150*50 – M.20

150*50

M.20

157

150*60 – M.20

150*60

M.20

158

150*75 – M.20

150*75

M.20

159

150*100 – M.20

150*100

M.20

160

200*50 – M.20

200*50

M.20

161

200*60 – M.20

200*60

M.20

162

200*70 – M.20

200*70

M.20

163

200*80 – M.20

200*80

M.20

164

200*90 – M.20

200*90

M.20

165

200*100 – M.20

200*100

M.20
