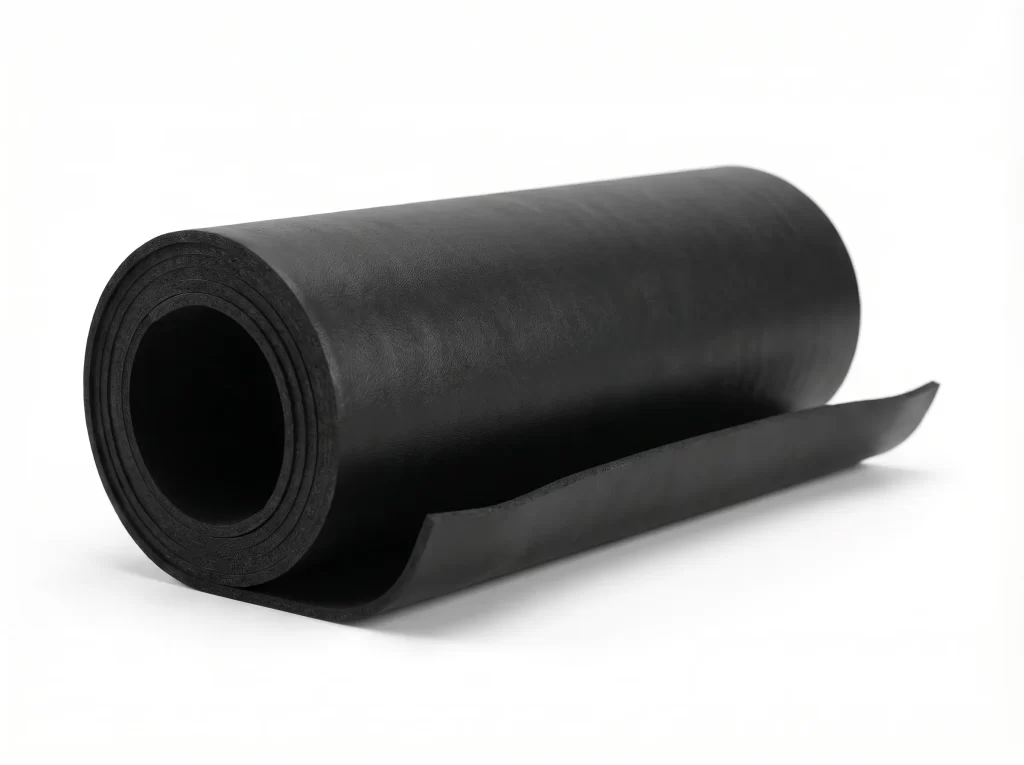

Neoprene rubber sheet is an industrial elastomer sheet made from high-grade Neoprene Synthetic Rubber (CR), engineered for sealing, gasketing, vibration damping, and structural protection across demanding manufacturing, marine, petrochemical, automotive, and construction environments. It is supplied in thicknesses starting from 2 mm up to 50 mm, available in continuous rolls or fixed heavy-duty plates, with full custom size and shape fabrication available for project-specific requirements.
Neoprene’s solid cross-section gives it superior resistance to petroleum-based oils, fuels, solvents, seawater, weathering, and moderate chemical exposure. Naturally flame-retardant, it prevents flame propagation while maintaining elasticity and long-term durability. As an industrial neoprene roll or plate, it can be supplied in standard dimensions or as a customized neoprene sheet cut to exact tolerances, ready for direct installation or further fabrication into precision seals and die-cut gaskets.
Key Applications
Custom neoprene gaskets for industrial flanges, covers, pipeline coatings, and equipment enclosures
Marine and shipbuilding sealing components resistant to saltwater corrosion and harsh marine environments
Sealing components in HVAC, ducting systems, plumbing, and fluid lines
Expansion joints and structural vibration isolators for bridges, viaducts, and heavy civil construction
Vibration and impact damping pads for machinery mounts, engine bases, and mechanical assemblies
Weatherproofing, soundproofing, and flame-retardant insulation layers in industrial facilities
Electrical insulation layers for low-voltage equipment, junction boxes, and control panels
Hygienic sealing solutions for food processing and pharmaceutical equipment (FDA-compliant options available)
Protective lining for fuel tanks, pipelines, storage reservoirs, and factory flooring
Thickness range: Base thickness starting from 2 mm up to 50 mm (continuous rolls and heavy-duty plates)
Standard roll and plate width options: 1000 mm, 1200 mm, and 1500 mm
Flame-retardant structure offering natural fire resistance and self-extinguishing properties
Solid, non-porous cross-section ensuring complete waterproof and liquid-tight performance
Full custom size and shape cutting available on request (“We can customize”)
Smooth or textured surface finish options with consistent thickness tolerances across the full sheet
High mechanical tear strength and resistance to dynamic stress loads
Operational Advantages
Excellent resistance to petroleum-based oils, grease, fuels, solvents, and industrial chemicals
Stable thermal performance across a wide operating temperature range (-30°C to +120°C)
Fire and flame-retardant characteristics enhancing facility and equipment safety
Outstanding resistance to ozone, UV radiation, atmospheric weathering, and marine saltwater
Exceptional mechanical wear, abrasion, and tear resistance under continuous dynamic loads
Flexible elastomeric structure suited for tight-radius bending, press-cutting, and precision die-cutting
Long service life reduces equipment maintenance downtime and seal replacement frequency
Technical Specifications Table
Property
Value
Test Standard
Material
Chloroprene Rubber (CR) / Neoprene
—
Base Thickness Range
2 mm to 50 mm (custom gauges available)
—
Standard Widths
1000 mm / 1200 mm / 1500 mm
—
Hardness
60 ± 5 Shore A
ASTM D 2240
Tensile Strength
≥ 8 MPa
ASTM D 412
Elongation at Break
≥ 250%
ISO 37
Operating Temperature Range
-30°C / +120°C
—
Fire / Flame Resistance
Flame-Retardant (Self-Extinguishing)
—
Ozone & Seawater Resistance
Excellent / No Cracking
ISO 1431-1
Standard Product Codes & Dimensions (Roll Products)
1000 mm Width Roll Series
Product Code
Dimensions (Width x Thickness)
Product Name
RS 2.10
1000 mm x 2 mm
Neoprene Rubber Sheet Roll
RS 3.10
1000 mm x 3 mm
Neoprene Rubber Sheet Roll
RS 4.10
1000 mm x 4 mm
Neoprene Rubber Sheet Roll
RS 5.10
1000 mm x 5 mm
Neoprene Rubber Sheet Roll
RS 6.10
1000 mm x 6 mm
Neoprene Rubber Sheet Roll
RS 8.10
1000 mm x 8 mm
Neoprene Rubber Sheet Roll
RS 10.10
1000 mm x 10 mm
Neoprene Rubber Sheet Roll
1200 mm Width Roll Series
Product Code
Dimensions (Width x Thickness)
Product Name
RS 2.12
1200 mm x 2 mm
Neoprene Rubber Sheet Roll
RS 3.12
1200 mm x 3 mm
Neoprene Rubber Sheet Roll
RS 4.12
1200 mm x 4 mm
Neoprene Rubber Sheet Roll
RS 5.12
1200 mm x 5 mm
Neoprene Rubber Sheet Roll
RS 6.12
1200 mm x 6 mm
Neoprene Rubber Sheet Roll
RS 8.12
1200 mm x 8 mm
Neoprene Rubber Sheet Roll
RS 10.12
1200 mm x 10 mm
Neoprene Rubber Sheet Roll
1500 mm Width Roll Series
Product Code
Dimensions (Width x Thickness)
Product Name
RS 2.15
1500 mm x 2 mm
Neoprene Rubber Sheet Roll
RS 3.15
1500 mm x 3 mm
Neoprene Rubber Sheet Roll
RS 4.15
1500 mm x 4 mm
Neoprene Rubber Sheet Roll
RS 5.15
1500 mm x 5 mm
Neoprene Rubber Sheet Roll
RS 6.15
1500 mm x 6 mm
Neoprene Rubber Sheet Roll
RS 8.15
1500 mm x 8 mm
Neoprene Rubber Sheet Roll
RS 10.15
1500 mm x 10 mm
Neoprene Rubber Sheet Roll
Standard Product Codes & Dimensions (Plate Products)
1000 x 2000 mm Plate Series
Product Code
Dimensions (Width x Length x Thickness)
Product Name
RS 2.1.2
1000 x 2000 x 2 mm
Neoprene Rubber Plate
RS 3.1.2
1000 x 2000 x 3 mm
Neoprene Rubber Plate
RS 4.1.2
1000 x 2000 x 4 mm
Neoprene Rubber Plate
RS 5.1.2
1000 x 2000 x 5 mm
Neoprene Rubber Plate
RS 6.1.2
1000 x 2000 x 6 mm
Neoprene Rubber Plate
RS 8.1.2
1000 x 2000 x 8 mm
Neoprene Rubber Plate
RS 10.1.2
1000 x 2000 x 10 mm
Neoprene Rubber Plate
RS 15.1.2
1000 x 2000 x 15 mm
Neoprene Rubber Plate
RS 20.1.2
1000 x 2000 x 20 mm
Neoprene Rubber Plate
RS 25.1.2
1000 x 2000 x 25 mm
Neoprene Rubber Plate
RS 30.1.2
1000 x 2000 x 30 mm
Neoprene Rubber Plate
RS 35.1.2
1000 x 2000 x 35 mm
Neoprene Rubber Plate
RS 40.1.2
1000 x 2000 x 40 mm
Neoprene Rubber Plate
RS 50.1.2
1000 x 2000 x 50 mm
Neoprene Rubber Plate
1200 x 2000 mm Plate Series
Product Code
Dimensions (Width x Length x Thickness)
Product Name
RS 2.1.2W
1200 x 2000 x 2 mm
Neoprene Rubber Plate
RS 3.1.2W
1200 x 2000 x 3 mm
Neoprene Rubber Plate
RS 4.1.2W
1200 x 2000 x 4 mm
Neoprene Rubber Plate
RS 5.1.2W
1200 x 2000 x 5 mm
Neoprene Rubber Plate
RS 6.1.2W
1200 x 2000 x 6 mm
Neoprene Rubber Plate
RS 8.1.2W
1200 x 2000 x 8 mm
Neoprene Rubber Plate
RS 10.1.2W
1200 x 2000 x 10 mm
Neoprene Rubber Plate
1500 x 2000 mm Plate Series
Product Code
Dimensions (Width x Length x Thickness)
Product Name
RS 2.1.5W
1500 x 2000 x 2 mm
Neoprene Rubber Plate
RS 3.1.5W
1500 x 2000 x 3 mm
Neoprene Rubber Plate
RS 4.1.5W
1500 x 2000 x 4 mm
Neoprene Rubber Plate
RS 5.1.5W
1500 x 2000 x 5 mm
Neoprene Rubber Plate
RS 6.1.5W
1500 x 2000 x 6 mm
Neoprene Rubber Plate
RS 8.1.5W
1500 x 2000 x 8 mm
Neoprene Rubber Plate
RS 10.1.5W
1500 x 2000 x 10 mm
Neoprene Rubber Plate
Application & Custom Gasket Fabrication Notes
Neoprene sheet is commonly supplied as a versatile base material for precision die-cut and custom-cut sealing gaskets across marine, petrochemical, automotive, construction, and heavy machinery sectors. Material can be supplied in continuous bulk rolls, standard rectangular plates, or custom-cut to exact profiles, inner/outer diameters, and hole patterns to match engineering drawings.
For gasket fabrication, thickness selection depends on the compression set and sealing pressure required for the application: thinner 2–3 mm sheets suit low-pressure flat seals, while heavier gauges (up to 50 mm) are used for structural load-bearing or heavy machinery vibration damping. Custom neoprene gasket orders can be supplied cut-to-size, in bulk rolls, or as individual finished parts, according to project volume. These specifications reflect Rubbersan’s neoprene sheet manufacturing standards.
