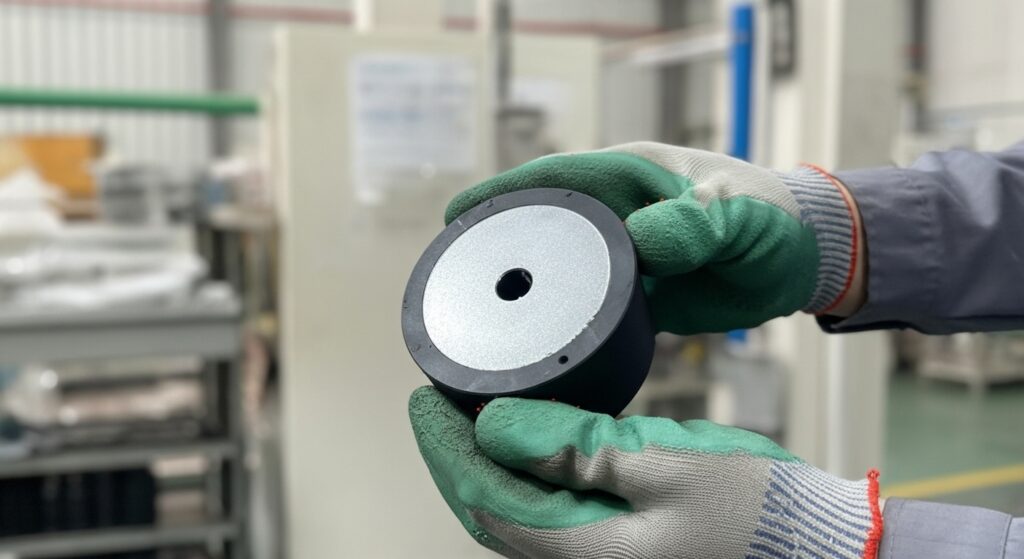

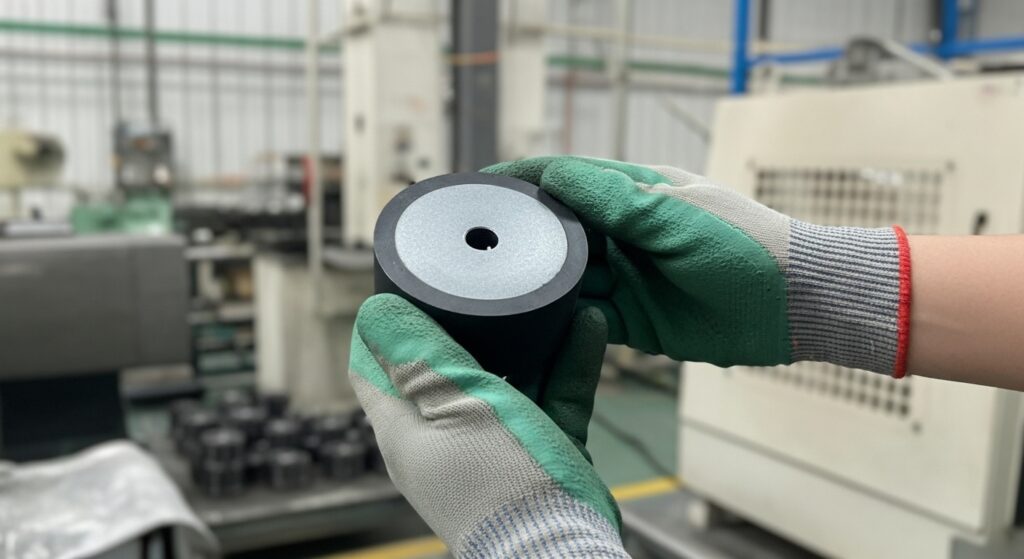

C Type Vibration Mount is a high-performance rubber mount specially designed to minimize vibrations and shocks in industrial machines, engines, generators, compressors, and heavy equipment. Its unique C-shaped structure effectively absorbs vibrations both vertically and horizontally, providing secure isolation between machines and the mounting surface.
C type vibration mounts are made from durable rubber materials such as EPDM, NBR, SBR, and neoprene rubber. These materials offer high elasticity, durability, and long life. Additionally, features such as oil resistance, ozone and UV resistance, and high temperature resistance ensure superior performance of C type mounts in industrial applications.
Applications
- Industrial machinery and production lines
- Compressor and generator assemblies
- Motor and pump bases
- Electrical panels and control units
- Air conditioning and ventilation systems
- Crane and heavy load lifting equipment
Advantages
- Maximum vibration and noise damping
- High stability and durability with C type special design
- Easy installation and long-lasting use
- Different size, hardness, and rubber material options
- Safe use with shock-absorbing and non-slip structure
- Extends the life of machinery and equipment, reduces maintenance costs
- Provides industrial vibration isolation and vibration control
C type vibration mounts have a wide range of applications as industrial vibration dampers, rubber vibration mounts, machine vibration absorbers, engine vibration mounts, and noise-reducing rubber mounts. Thanks to the ability to produce custom sizes, hardness, and material types, they can adapt to all kinds of machinery and equipment. C type mount prices vary depending on size and material selection.
Rubber Mount Dimensions
| RUBBERSAN CODE | PRODUCT | DIMENSION | BOLT |
|---|
| 010 | 6*7 – M.3 | 6*7 | M.3 |
| 011 | 8*8 – M.3 | 8*8 | M.3 |
| 012 | 10*5 – M.4 | 10*5 | M.4 |
| 013 | 10*8 – M.4 | 10*8 | M.4 |
| 014 | 10*10 – M.4 | 10*10 | M.4 |
| 015 | 10*13 – M.4 | 10*13 | M.4 |
| 016 | 10*15 – M.4 | 10*15 | M.4 |
| 017 | 10*20 – M.4 | 10*20 | M.4 |
| 018 | 15*5 – M.4 | 15*5 | M.4 |
| 019 | 15*8 – M.4 | 15*8 | M.4 |
| 020 | 15*10 – M.4 | 15*10 | M.4 |
| 021 | 15*15 – M.4 | 15*15 | M.4 |
| 022 | 15*20 – M.4 | 15*20 | M.4 |
| 023 | 15*25 – M.4 | 15*25 | M.4 |
| 024 | 18*15 – M.6 | 18*15 | M.6 |
| 025 | 20*8 – M.6 | 20*8 | M.6 |
| 026 | 20*10 – M.6 | 20*10 | M.6 |
| 027 | 20*13 – M.6 | 20*13 | M.6 |
| 028 | 20*15 – M.6 | 20*15 | M.6 |
| 029 | 20*20 – M.6 | 20*20 | M.6 |
| 030 | 20*25 – M.6 | 20*25 | M.6 |
| 031 | 20*30 – M.6 | 20*30 | M.6 |
| 032 | 20*40 – M.6 | 20*40 | M.6 |
| 033 | 20*50 – M.6 | 20*50 | M.6 |
| 034 | 25*8 – M.6 | 25*8 | M.6 |
| 035 | 25*10 – M.6 | 25*10 | M.6 |
| 036 | 25*15 – M.6 | 25*15 | M.6 |
| 037 | 25*17 – M.6 | 25*17 | M.6 |
| 038 | 25*20 – M.6 | 25*20 | M.6 |
| 039 | 25*25 – M.6 | 25*25 | M.6 |
| 040 | 25*30 – M.6 | 25*30 | M.6 |
| 041 | 25*40 – M.6 | 25*40 | M.6 |
| 042 | 25*50 – M.6 | 25*50 | M.6 |
| 043 | 30*10 – M.8 | 30*10 | M.8 |
| 044 | 30*15 – M.8 | 30*15 | M.8 |
| 045 | 30*20 – M.8 | 30*20 | M.8 |
| 046 | 30*25 – M.8 | 30*25 | M.8 |
| 047 | 30*30 – M.8 | 30*30 | M.8 |
| 048 | 30*35 – M.8 | 30*35 | M.8 |
| 049 | 30*40 – M.8 | 30*40 | M.8 |
| 050 | 30*50 – M.8 | 30*50 | M.8 |
| 051 | 35*30 – M.8 | 35*30 | M.8 |
| 052 | 40*10 – M.8 | 40*10 | M.8 |
| 053 | 40*15 – M.8 | 40*15 | M.8 |
| 054 | 40*18 – M.8 | 40*18 | M.8 |
| 055 | 40*20 – M.8 | 40*20 | M.8 |
| 056 | 40*25 – M.8 | 40*25 | M.8 |
| 057 | 40*30 – M.8 | 40*30 | M.8 |
| 058 | 40*35 – M.8 | 40*35 | M.8 |
| 059 | 40*40 – M.8 | 40*40 | M.8 |
| 060 | 40*45 – M.8 | 40*45 | M.8 |
| 061 | 40*50 – M.8 | 40*50 | M.8 |
| 062 | 45*30 – M.8 | 45*30 | M.8 |
| 063 | 50*10 – M.10 | 50*10 | M.10 |
| 064 | 50*15 – M.10 | 50*15 | M.10 |
| 065 | 50*20 – M.10 | 50*20 | M.10 |
| 066 | 50*25 – M.10 | 50*25 | M.10 |
| 067 | 50*30 – M.10 | 50*30 | M.10 |
| 068 | 50*35 – M.10 | 50*35 | M.10 |
| 069 | 50*40 – M.10 | 50*40 | M.10 |
| 070 | 50*45 – M.10 | 50*45 | M.10 |
| 071 | 50*50 – M.10 | 50*50 | M.10 |
| 072 | 50*55 – M.10 | 50*55 | M.10 |
| 073 | 50*60 – M.10 | 50*60 | M.10 |
| 074 | 50*65 – M.10 | 50*65 | M.10 |
| 075 | 50*70 – M.10 | 50*70 | M.10 |
| 076 | 50*80 – M.10 | 50*80 | M.10 |
| 077 | 55*20 – M.10 | 55*20 | M.10 |
| 078 | 55*35 – M.10 | 55*35 | M.10 |
| 079 | 60*10 – M.10 | 60*10 | M.10 |
| 080 | 60*15 – M.10 | 60*15 | M.10 |
| 081 | 60*20 – M.10 | 60*20 | M.10 |
| 082 | 60*25 – M.10 | 60*25 | M.10 |
| 083 | 60*30 – M.10 | 60*30 | M.10 |
| 084 | 60*35 – M.10 | 60*35 | M.10 |
| 085 | 60*40 – M.10 | 60*40 | M.10 |
| 086 | 60*45 – M.10 | 60*45 | M.10 |
| 087 | 60*50 – M.10 | 60*50 | M.10 |
| 088 | 60*55 – M.10 | 60*55 | M.10 |
| 089 | 60*60 – M.10 | 60*60 | M.10 |
| 090 | 65*40 – M.10 | 65*40 | M.10 |
| 091 | 70*20 – M.12 | 70*20 | M.12 |
| 092 | 70*25 – M.12 | 70*25 | M.12 |
| 093 | 70*30 – M.12 | 70*30 | M.12 |
| 094 | 70*35 – M.12 | 70*35 | M.12 |
| 095 | 70*40 – M.12 | 70*40 | M.12 |
| 096 | 70*45 – M.12 | 70*45 | M.12 |
| 097 | 70*50 – M.12 | 70*50 | M.12 |
| 098 | 70*55 – M.12 | 70*55 | M.12 |
| 099 | 70*60 – M.12 | 70*60 | M.12 |
| 100 | 70*70 – M.12 | 70*70 | M.12 |
| 101 | 75*20 – M.12 | 75*20 | M.12 |
| 102 | 75*25 – M.12 | 75*25 | M.12 |
| 103 | 75*30 – M.12 | 75*30 | M.12 |
| 104 | 75*35 – M.12 | 75*35 | M.12 |
| 105 | 75*40 – M.12 | 75*40 | M.12 |
| 106 | 75*45 – M.12 | 75*45 | M.12 |
| 107 | 75*50 – M.12 | 75*50 | M.12 |
| 108 | 75*55 – M.12 | 75*55 | M.12 |
| 109 | 75*60 – M.12 | 75*60 | M.12 |
| 110 | 75*75 – M.12 | 75*75 | M.12 |
| 111 | 80*25 – M.12 | 80*25 | M.12 |
| 112 | 80*30 – M.12 | 80*30 | M.12 |
| 113 | 80*35 – M.12 | 80*35 | M.12 |
| 114 | 80*40 – M.12 | 80*40 | M.12 |
| 115 | 80*45 – M.12 | 80*45 | M.12 |
| 116 | 80*50 – M.12 | 80*50 | M.12 |
| 117 | 80*55 – M.12 | 80*55 | M.12 |
| 118 | 80*60 – M.12 | 80*60 | M.12 |
| 119 | 80*65 – M.12 | 80*65 | M.12 |
| 120 | 80*70 – M.12 | 80*70 | M.12 |
| 121 | 80*80 – M.12 | 80*80 | M.12 |
| 122 | 80*90 – M.12 | 80*90 | M.12 |
| 123 | 80*100 – M.12 | 80*100 | M.12 |
| 124 | 90*55 – M.16 | 90*55 | M.16 |
| 125 | 100*25 – M.16 | 100*25 | M.16 |
| 126 | 100*30 – M.16 | 100*30 | M.16 |
| 127 | 100*35 – M.16 | 100*35 | M.16 |
| 128 | 100*40 – M.16 | 100*40 | M.16 |
| 129 | 100*45 – M.16 | 100*45 | M.16 |
| 130 | 100*50 – M.16 | 100*50 | M.16 |
| 131 | 100*55 – M.16 | 100*55 | M.16 |
| 132 | 100*60 – M.16 | 100*60 | M.16 |
| 133 | 100*65 – M.16 | 100*65 | M.16 |
| 134 | 100*70 – M.16 | 100*70 | M.16 |
| 135 | 100*75 – M.16 | 100*75 | M.16 |
| 136 | 100*80 – M.16 | 100*80 | M.16 |
| 137 | 100*100 – M.16 | 100*100 | M.16 |
| 138 | 120*30 – M.16 | 120*30 | M.16 |
| 139 | 120*35 – M.16 | 120*35 | M.16 |
| 140 | 120*40 – M.16 | 120*40 | M.16 |
| 141 | 120*45 – M.16 | 120*45 | M.16 |
| 142 | 120*50 – M.16 | 120*50 | M.16 |
| 143 | 120*55 – M.16 | 120*55 | M.16 |
| 144 | 120*60 – M.16 | 120*60 | M.16 |
| 145 | 120*70 – M.16 | 120*70 | M.16 |
| 146 | 120*80 – M.16 | 120*80 | M.16 |
| 147 | 120*100 – M.16 | 120*100 | M.16 |
| 148 | 120*120 – M.16 | 120*120 | M.16 |
| 149 | 130*35 – M.16 | 130*35 | M.16 |
| 150 | 130*50 – M.16 | 130*50 | M.16 |
| 151 | 130*60 – M.16 | 130*60 | M.16 |
| 152 | 140*40 – M.20 | 140*40 | M.20 |
| 153 | 140*50 – M.20 | 140*50 | M.20 |
| 154 | 140*60 – M.20 | 140*60 | M.20 |
| 155 | 140*70 – M.20 | 140*70 | M.20 |
| 156 | 150*50 – M.20 | 150*50 | M.20 |
| 157 | 150*60 – M.20 | 150*60 | M.20 |
| 158 | 150*75 – M.20 | 150*75 | M.20 |
| 159 | 150*100 – M.20 | 150*100 | M.20 |
| 160 | 200*50 – M.20 | 200*50 | M.20 |
| 161 | 200*60 – M.20 | 200*60 | M.20 |
| 162 | 200*70 – M.20 | 200*70 | M.20 |
| 163 | 200*80 – M.20 | 200*80 | M.20 |
| 164 | 200*90 – M.20 | 200*90 | M.20 |
| 165 | 200*100 – M.20 | 200*100 | M.20 |
