Steel Construction Pads – Load Bearing and Seismic Isolation Solutions

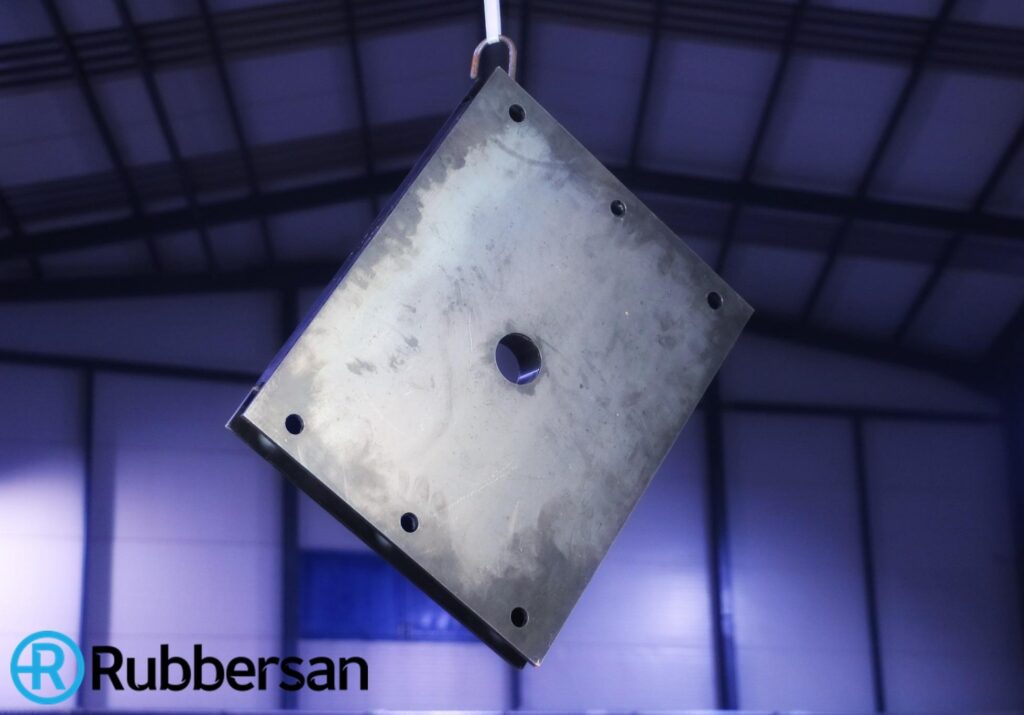

Steel construction pads are elastomeric (rubber) layers placed under steel structures to provide heavy load bearing, vibration isolation, and seismic flexibility. These pads play a critical role in many structural applications such as bridges, railway tracks, crane feet, construction machinery, and industrial equipment.

Types of Pads and Applications

• Rubber Steel Pads (Steel/Rubber Pads): Rubber pads reinforced with steel plates improve load distribution and reduce vibrations. They are widely used in bridge and railway projects. vibrasystems.com
• Laminated Bearing Pads: These pads, featuring steel plates between layers of neoprene or natural rubber, offer high load bearing capacity and flexibility. They are preferred in bridge construction and heavy industry applications. scougalrubber.com
• PTFE Bearing Pads: These pads, made by adding a PTFE (polytetrafluoroethylene) coating to steel surfaces, reduce friction and accommodate structural movements. They are ideal for balancing expansion and movement in bridges. JVI Inc.
• Rail Rubber Pads: Located between railway tracks and concrete sleepers, these pads reduce vibration and ensure the smooth operation of the rails. They are widely used in railway infrastructure.

Technical Specifications and Advantages

• High Load Bearing Capacity: The combination of steel and rubber provides high load capacity.
• Vibration and Impact Reduction: The elastomeric structure absorbs vibrations and reduces impacts.
• Seismic Flexibility: Adapts to structural movements, enhancing seismic resilience.
• Long Life and Durability: Resistant to weather conditions, chemical effects, and wear.
• Easy Installation: Simple to install with low maintenance requirements.

Applications

• Bridge Constructions: Used in projects requiring high load capacity and flexibility.
• Railway Systems: Reduces vibration between rails and sleepers, ensuring smooth rail operation.
• Crane and Machine Systems: Provides balance and stability under equipment feet.
• Industrial Structures: Used for vibration isolation and load bearing in facilities with large machinery.
• Structures Requiring Seismic Isolation: Increases flexibility of structures in earthquake-prone areas.

Steel construction pads enhance the durability of structures while reducing maintenance costs and offering long-lasting solutions. Custom sizes and designs are available for different projects. Contact us for detailed information and a price quote.
